Class 100 Gloucester RC&W 2-car DMUs


GRC&W Material

This page contains material relating to the vehicles produced by the builders, Gloucester Railway Carriage and Wagon Company Limited. More details on the company can be found in the DMU builders section.

Advertisements

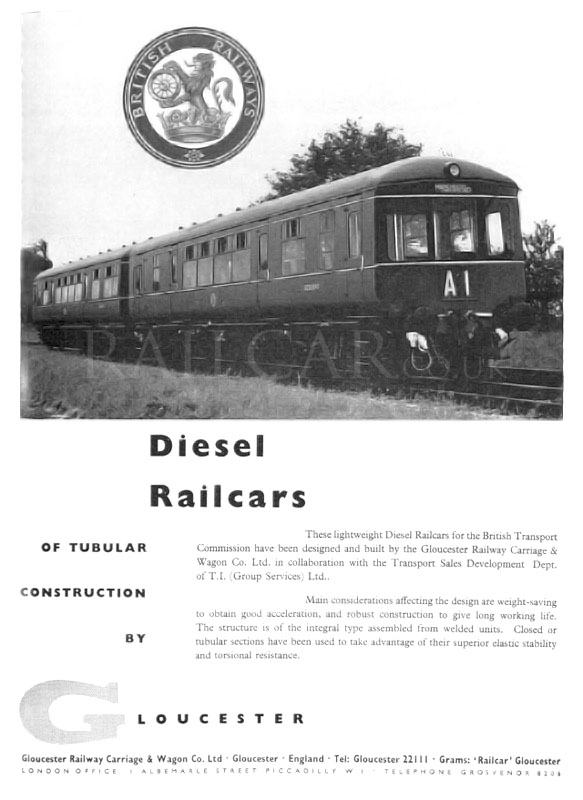

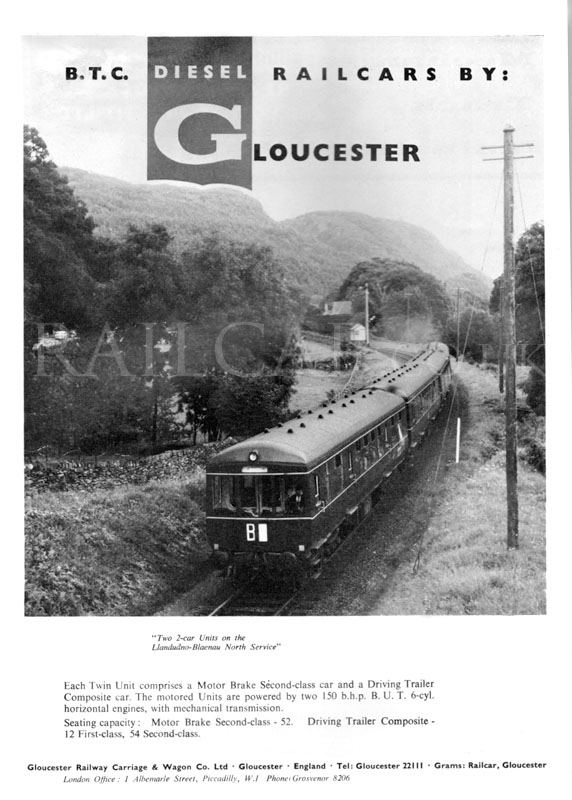

These were published in trade magazines. The first shows Sc50340 and presumably Sc56095. The second shows two sets on a Llandudno-Blaenau North service, the same image was also used in the Summer 1958 DMU ABC (page 50) credited to K Field.

GRCW advert GRCW advert

Diagrams

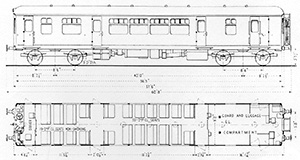

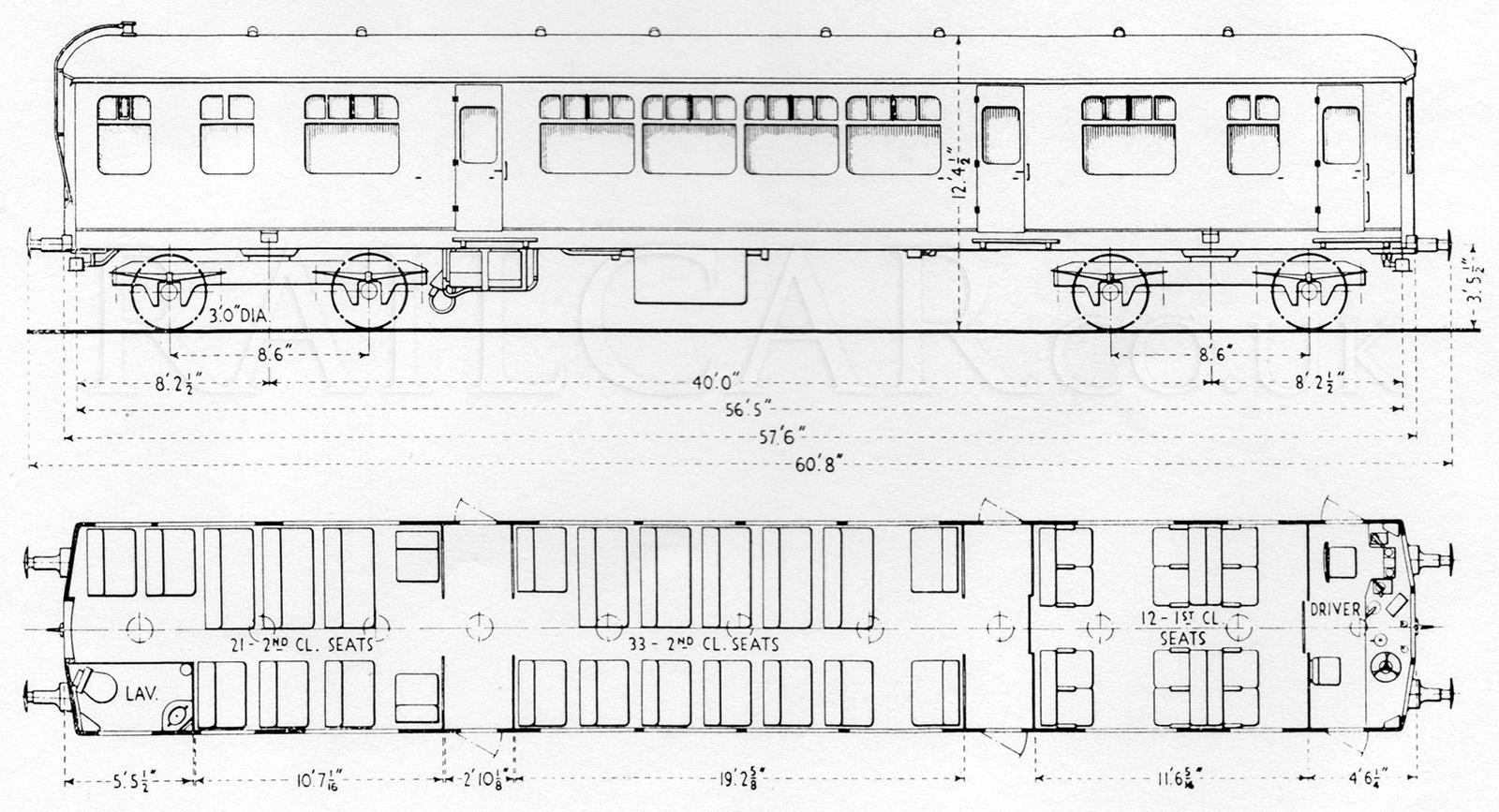

These general arrangement drawings had better details than the BR diagrams.

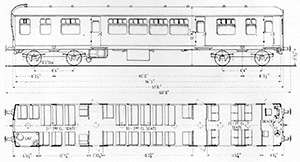

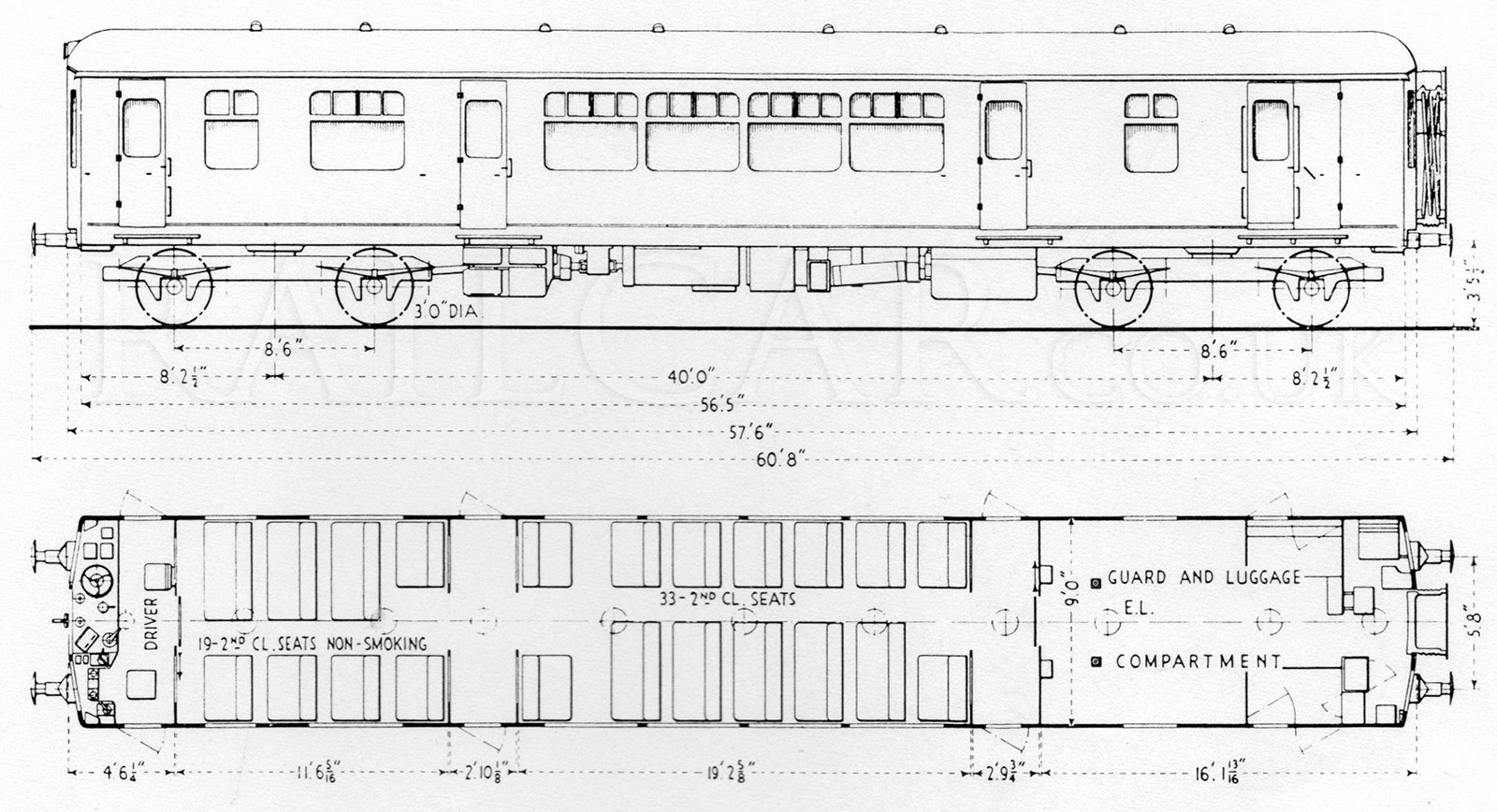

DMBS drawing DTC drawing

Order book

These three pages from the company's order book contain many details about the vehicles. Courtesy of Evan Green-Hughes.

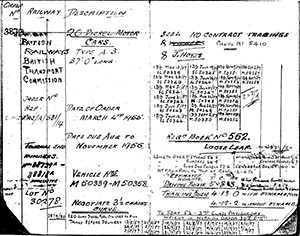

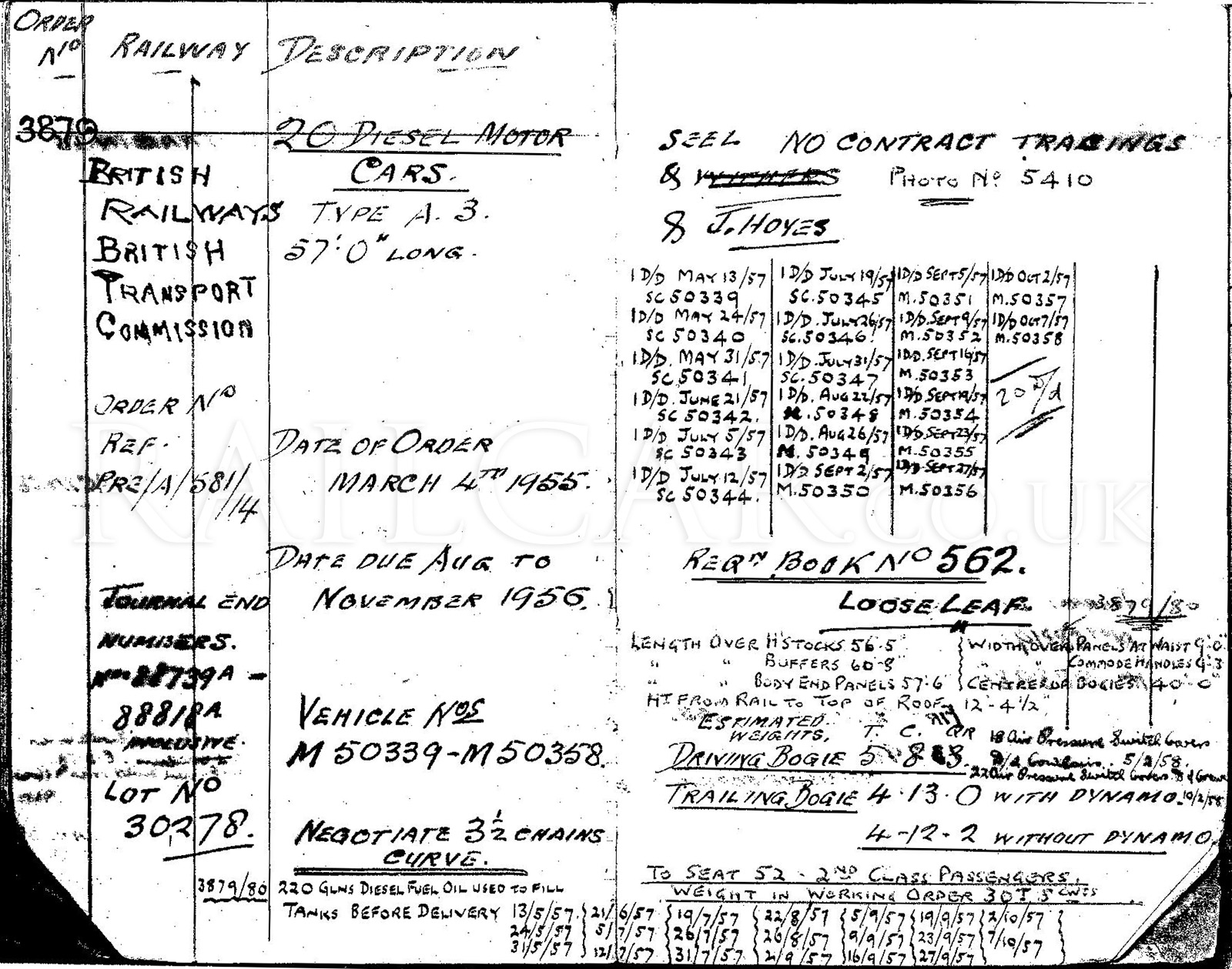

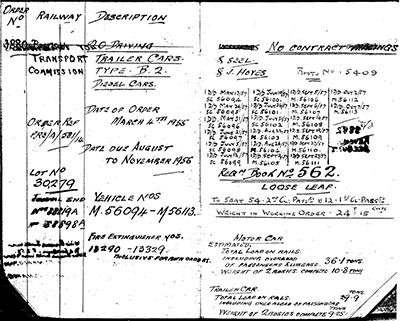

Page detailing batch one power cars

Batch one power cars

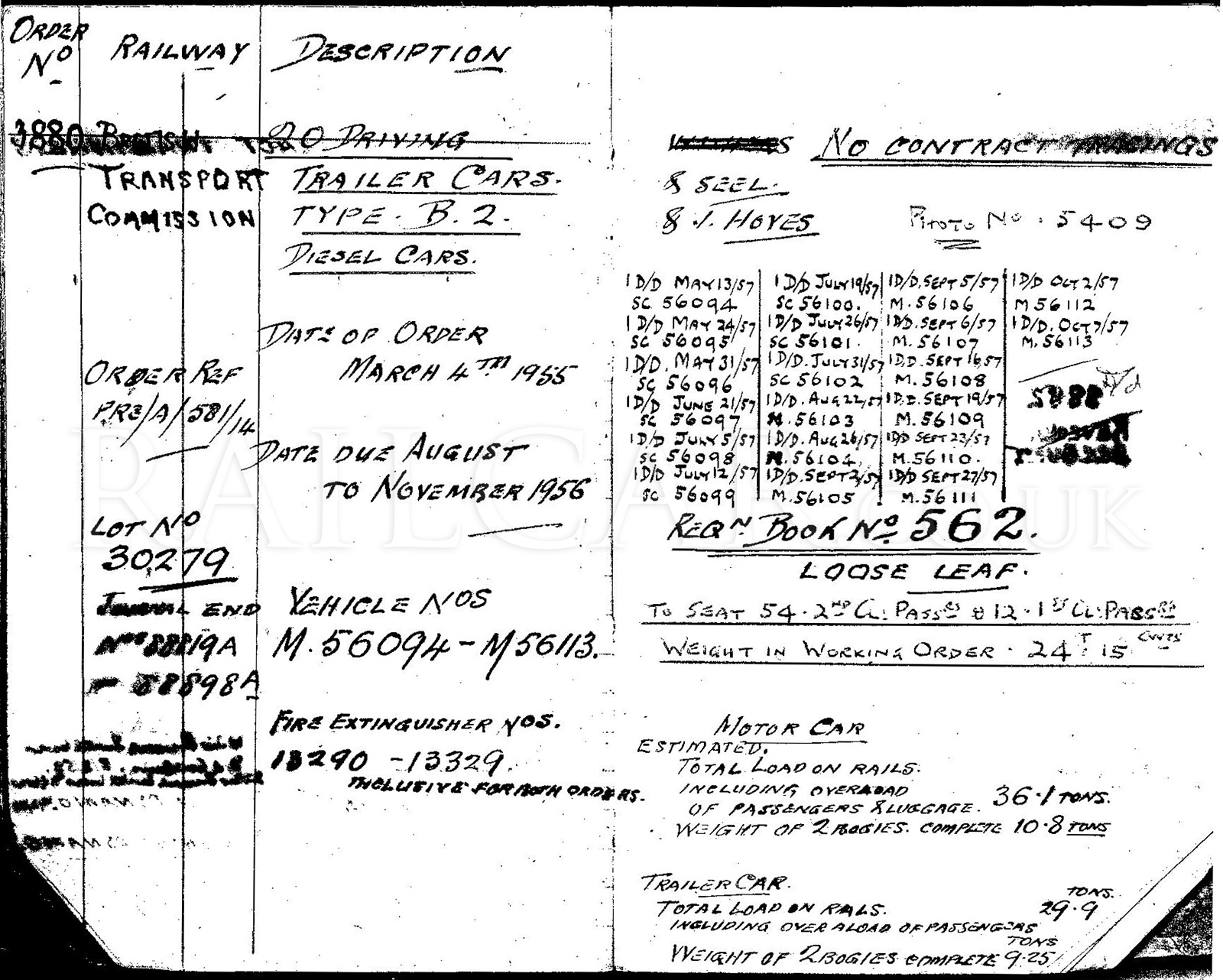

Page detailing batch one trailer cars

Batch one trailer cars

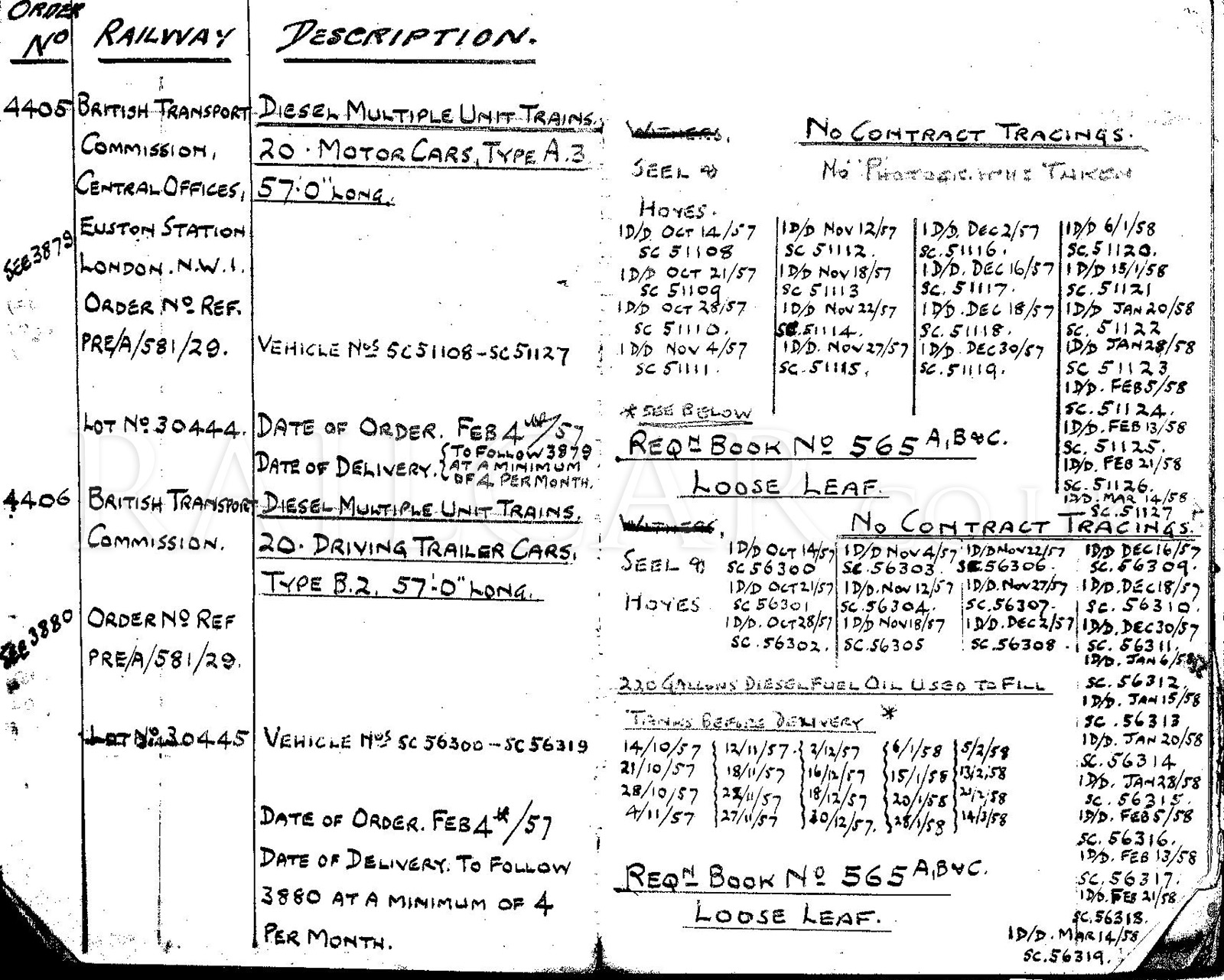

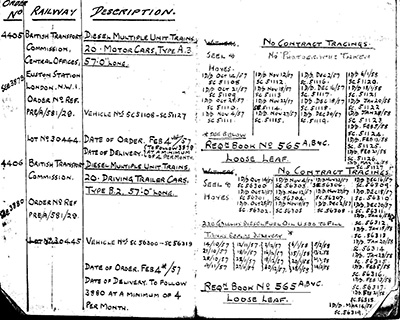

Page detailing batch two

Batch two

Works Pictures

The GRC&W company records, including the Works photograph albums, are now held by Gloucestershire Archives (collection reference D4791) and we are grateful for their permission to reproduce these images here.

Construction

Row of Solebar sections

Three fabricated sections which will form solebars.

Neat Row of Solebar sections

Probably a touched up version of the first image.

Long section of metal in jig

A cantrail section in a jig that allows easy rotation.

Long sections of corrugated metal

Corrugated steel floor sections.

Two rectangular metal sections

End longitudinal units.

Rectangular metal construction

A bolster unit for a bogie.

Underframe upside down on floor

An underframe, sitting upside down, and the 'centre castings' which sit on the bogie (and are held in place by a 'centre pin' through the hole) can be seen. It also shows the longitudinal corrugated steel sections forming the floor, also know as 'key sheeting'.

A bodyside section in the assembly jig

The bodyside for a DMBS in the assembly jig.

A sub assembly in a jig

A sub-assembly, possibly a vehicle inner end.

A part built roof sitting on a jig

A roof frame with half the panelling added.

A bogie

A completed motor bogie.

Testing

Wires all around a bodyshell doorway

Strain gauges around a doorway during stress testing.

Wires on a body section

Strain gauges on the bolster quarter.

Corrugated metal with gauges at intervals

Strain gauges on the floor.

Metal vehicle body with no doors or windows

A bodyshell during stress testing.

Completed Vehicles

The company allocated a 'photo no.' to the two batch one vehicle types - 5409 for the DTCL and 5410 for the DMBS. The order book above noted that no images were taken of batch two vehicles.

The first two exterior image feature Scottish Region vehicles, new in May 1957. The interior images are undated, but are presumed to be taken at the same time since they appeared in the railway press soon after.

3/4 exterior view of completed Class 100

Negative 5-57/7
A new two-car set, location unknown.

3/4 exterior view of completed Class 100 arriving in station

Negative unknown
Sc56095 and presumably Sc50340, location unknown.

Class 100 DMBS second class interior

Negative 5-57/10 (5410)
Interior of DMBS.

Class 100 DMBS luggage compartment

Negative 5-57/13 (5410)
Luggage compartment in DMBS.

Class 100 DTCL first class saloon

Negative 5-57/14 (5409)
Interior of DTCL taken in first class saloon.

Class 100 DMBS driver's compartment horizontal view

Negative 5-57/16 (5410)
Drivers compartment DMBS.

Class 100 DMBS driver's compartment vertical view

Negative 5-57/17 (5410)
Drivers compartment DMBS.

Class 100 DMBS guard's area

Negative 5-57/2? (5410)
Guards area in DMBS.

Class 100 DTCL lavatory looking at toilet

Negative 5-57/21 (5409)
Lavatory, DTCL.

Class 100 DTCL lavatory looking at sink

Negative 5-57/22 (5409)
Lavatory, DTCL.

These four matted images have a date of October 1957 (which matches the delivery dates of M50358 + M56113) on the information boards and were presumably taken on GRC&W premises.

3/4 exterior view of M56113

Negative 5409
Exterior view of M56113.

Side view of M56113

Negative 5409
Side view of M56113.

Side view of M50358

Negative 5410
Side view of M50358.

rear 3/4 exterior view of M50358

Negative 5410
Rear view of M50358.
