Class 111 Met-Camm sets 2/3/4-car DMUs


Introduced: 1957
Coupling code: Blue Square
Underframe: 57ft 6in
Engines: Rolls Royce 180hp
Transmission: Mechanical

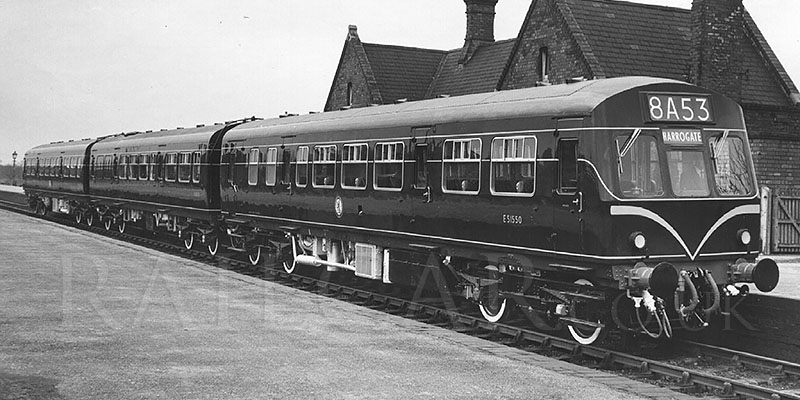

Class 111 Met-Camm DMU

A more powerful variation of the Metropolitan Cammell Class 101/2s. Four power / trailer sets were delivered to the LMR Manchester area, followed by ten 3-car sets for the NER at Bradford, and a further ten 3-car/2-car sets for the NER, this last batch easily identifiable by a four-character headcode box.

The unpowered vehicles could also be found working with Class 101/2 power cars, particularly the buffet cars. These were ordered as regular centre cars, the order was changed late on and the vehicles delivered independently, yet they remained considered by BR as Class 111s.

In the 1980s most power cars had one engine removed as a maintenance / cost saving measure and formed into power twins. With 360hp they were still more powerful than a conventional power / trailer set.

All power cars were withdrawn by 1989, a driver trailer survived into the 2000s. Just one buffet car was preserved.

Summary
Description
- LMR 2-car
- NER 3-car (earlier)
- NER 3-car (later)
Drivers Instructions & Adverts
Numbering
Liveries

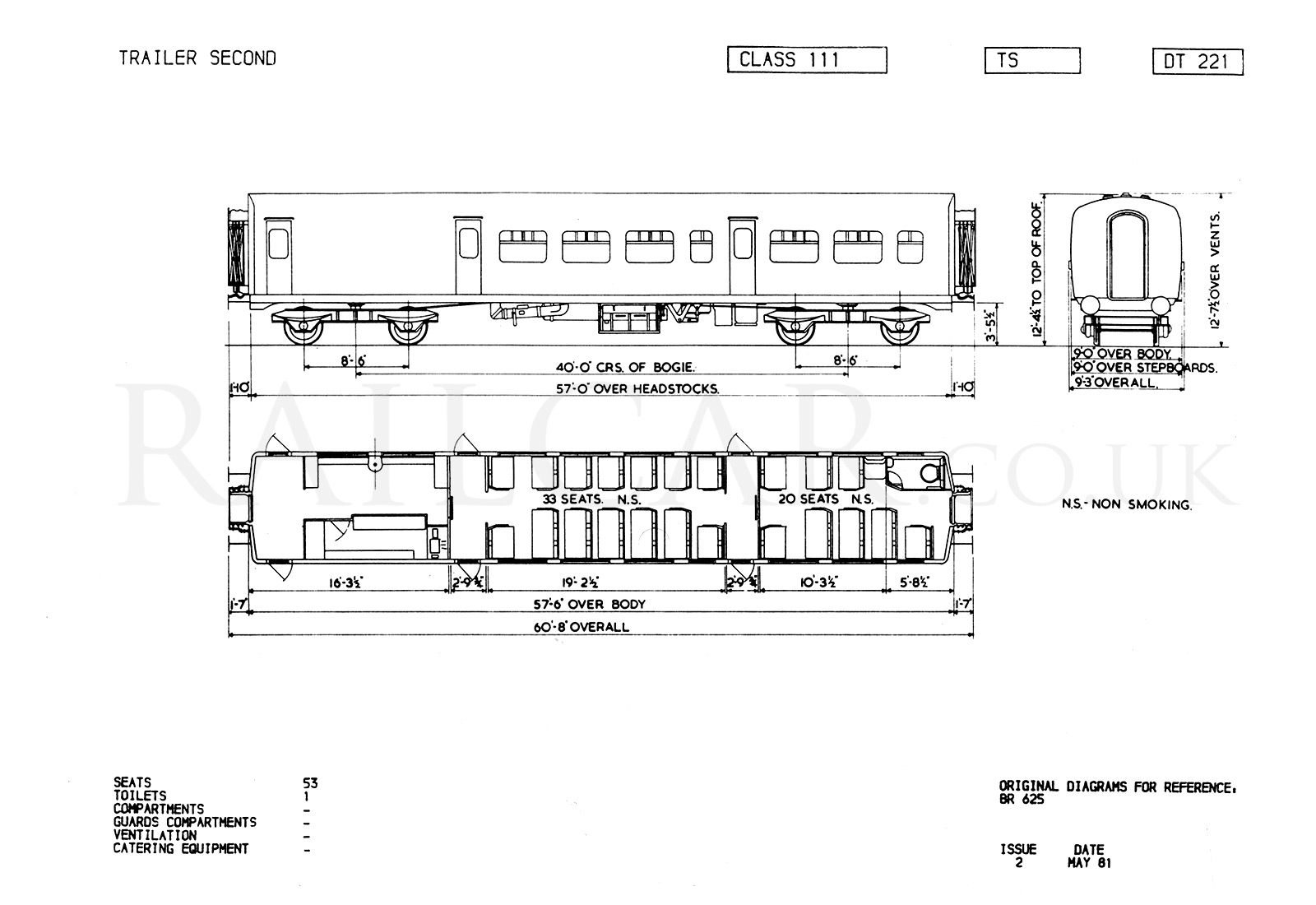

LMR plans
Operations
Decline
Non-Passenger Use
Images

Details about the preserved Class 111 vehicle can be found here.

Many of the works photos are courtesy of the Kevin Dowd Collection.
