50000 / 56000 Derby 2-car DMU


Diagrams

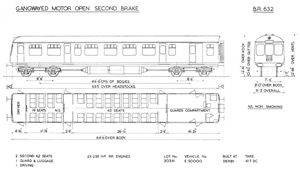

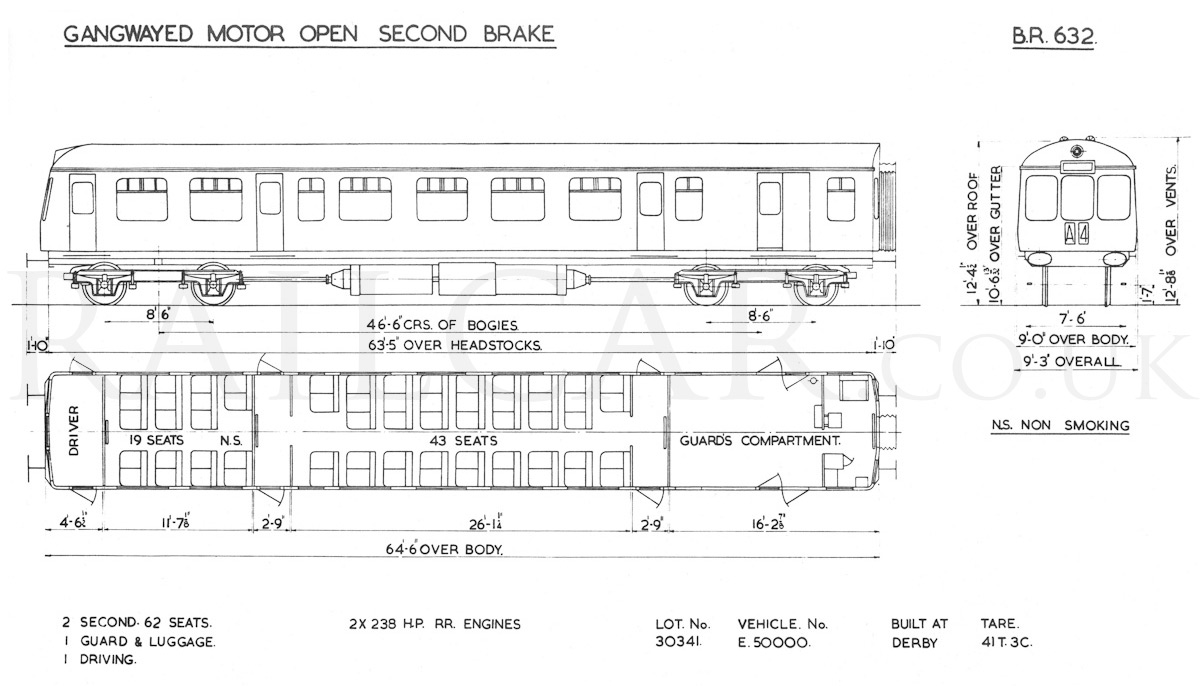

DMBS: BR 632 & DTC: BR 641. The power car gets its own diagram due to the different power equipment, but the DTC diagram is shared with the Class 114s.

BR diagram 632 BR diagram 641

Works Pictures

British Railways, photographed as part of the Derby collection.

BR Derby works photo 57-603

Negative 57/603

Rolls Royce

Courtesy of Mike Jones. In the first two images the set is on the Wirksworth branch, probably in very early 1957.

Rolls Royce works photo W58565

Negative W58565

Rolls Royce works photo W58567

Negative W58567

Rolls Royce works photo W58571

Negative W58571

Rolls Royce works photo W58572

Negative W58572

This one, also thought to be on the Wirksworth branch, was part of a Rolls Royce test report.

Rolls Royce works photo W58572

Negative unknown

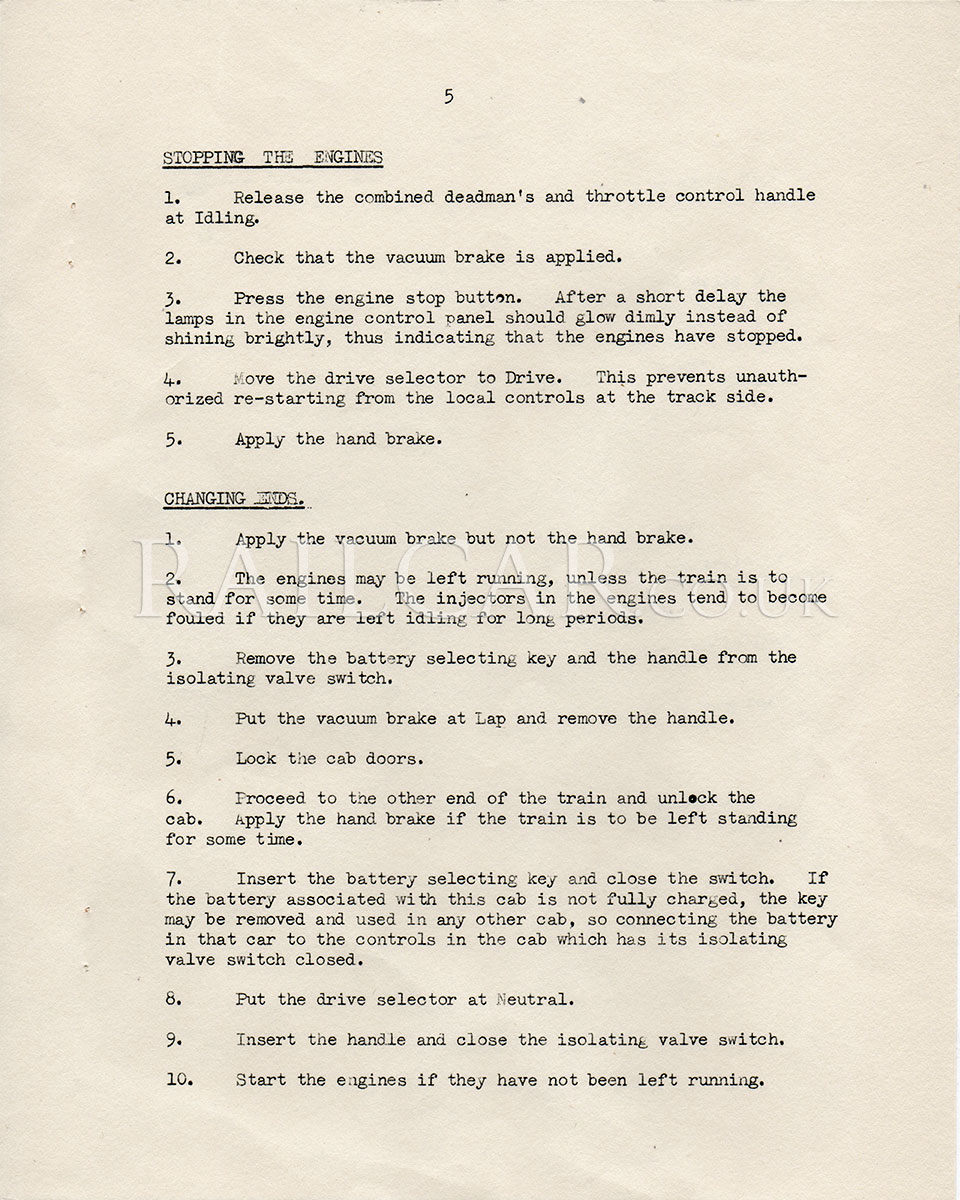

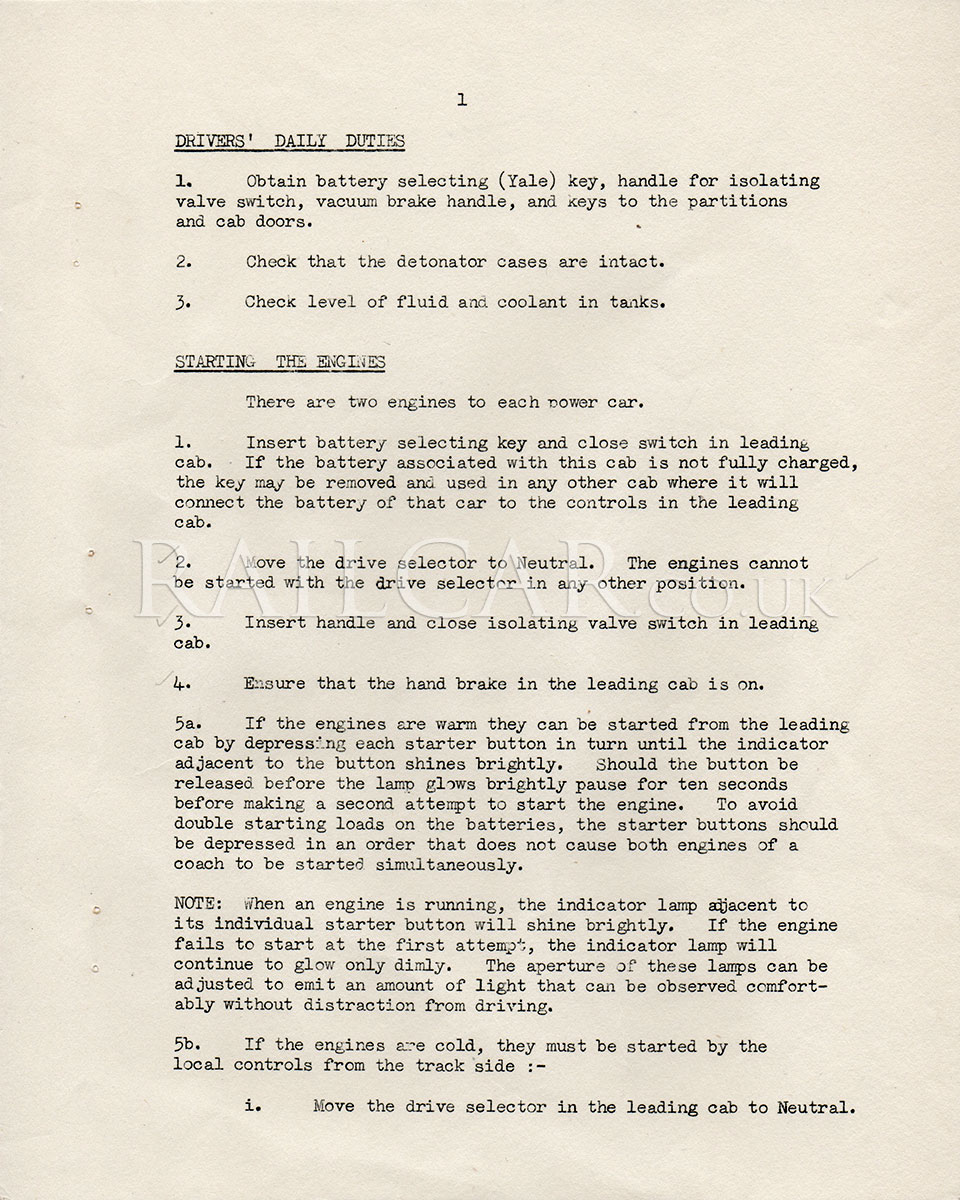

Driving Instructions

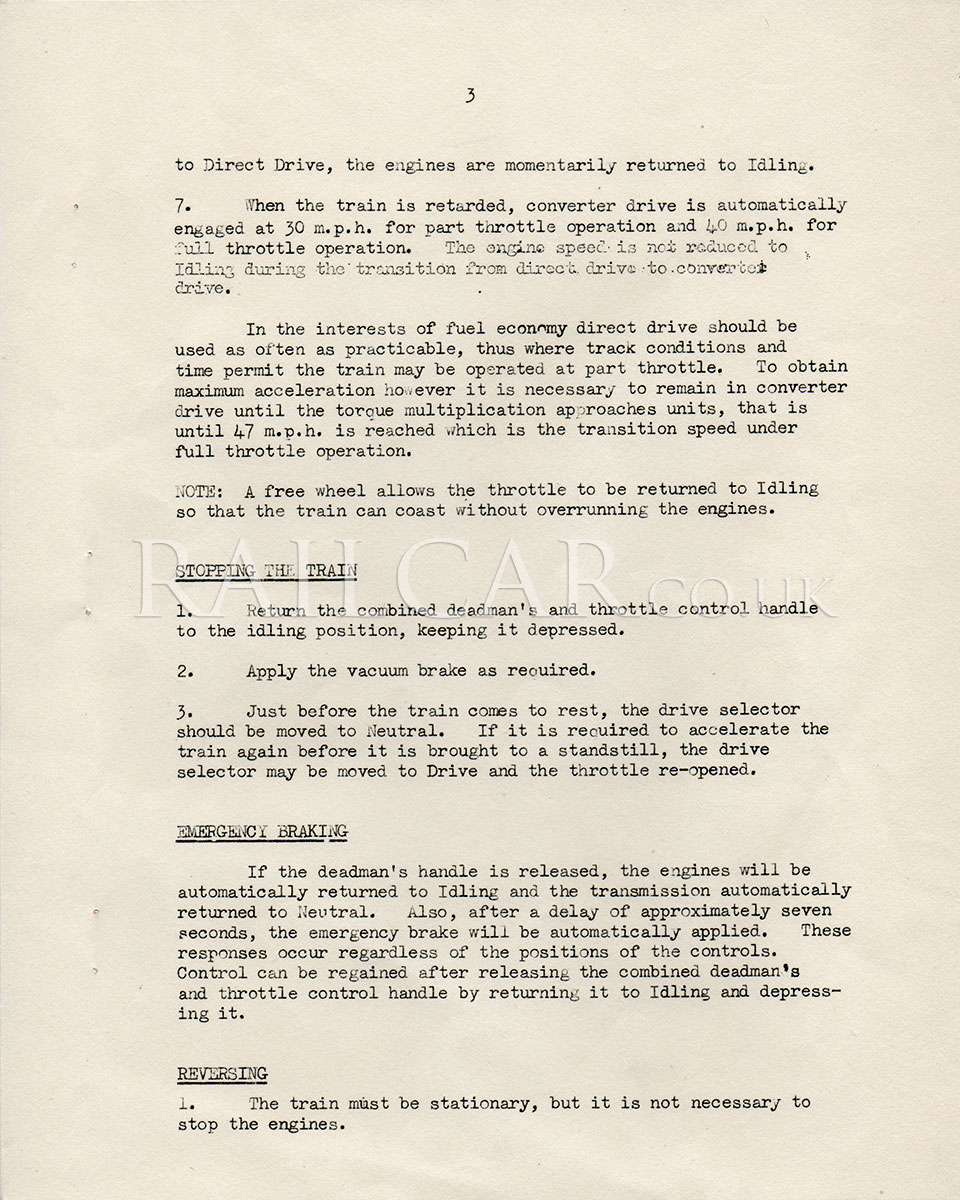

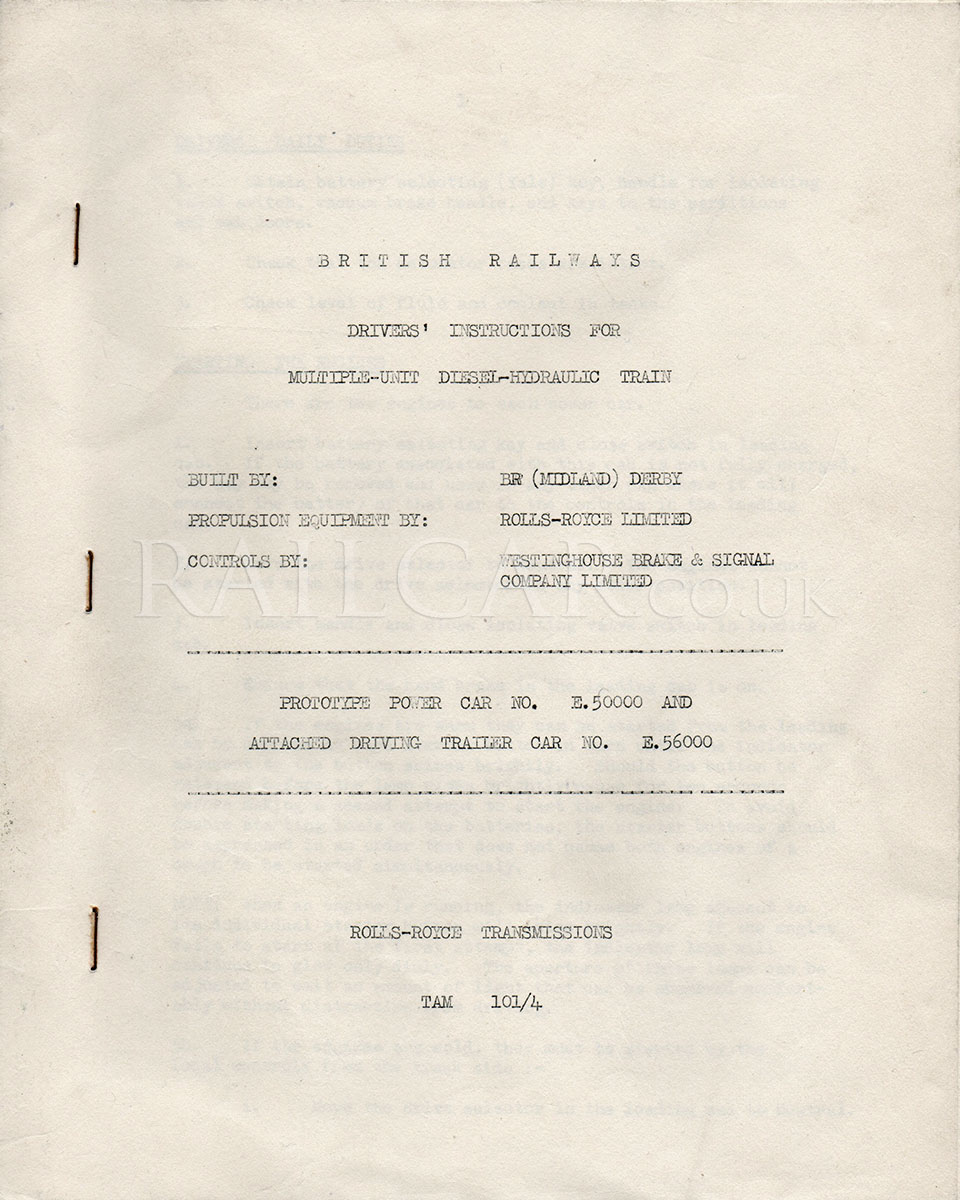

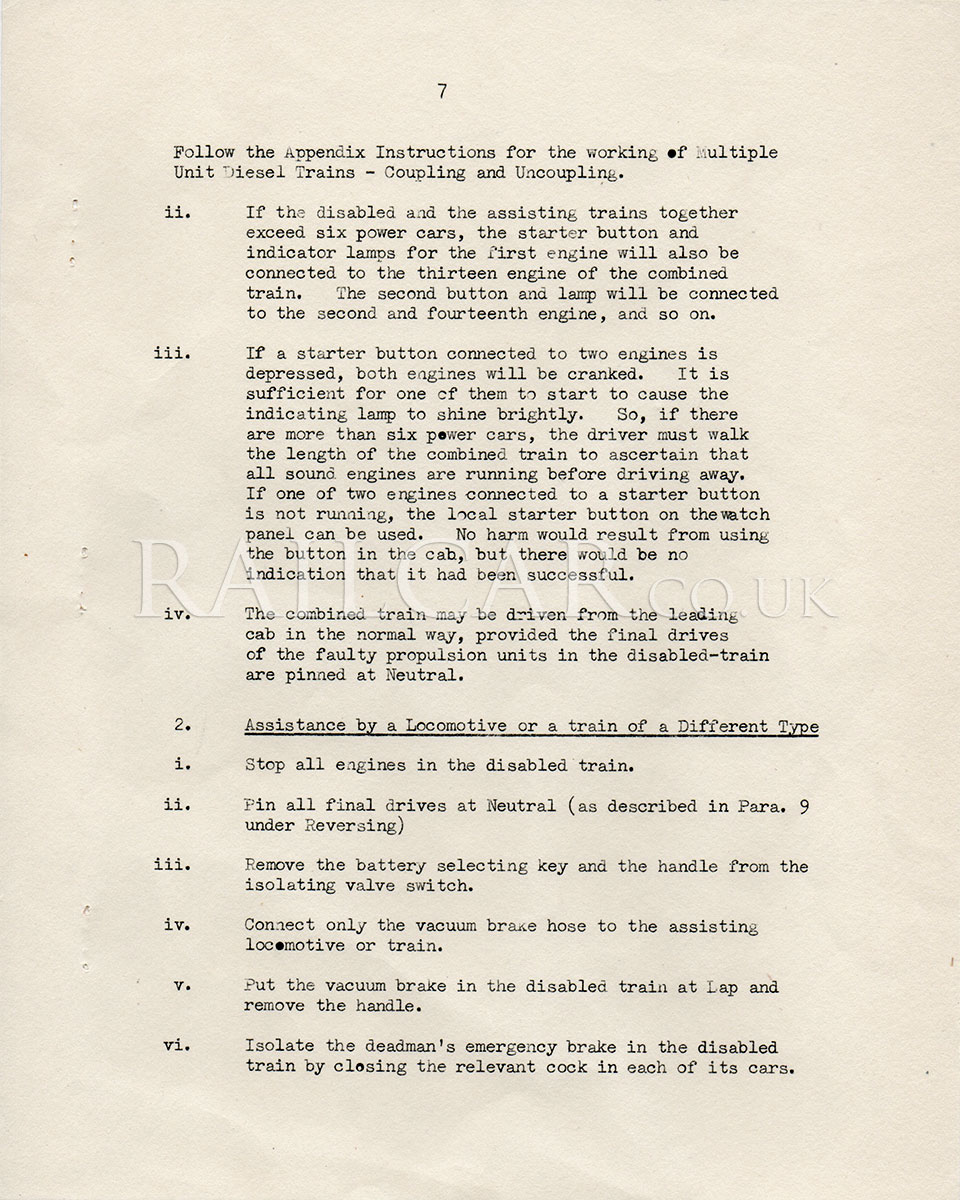

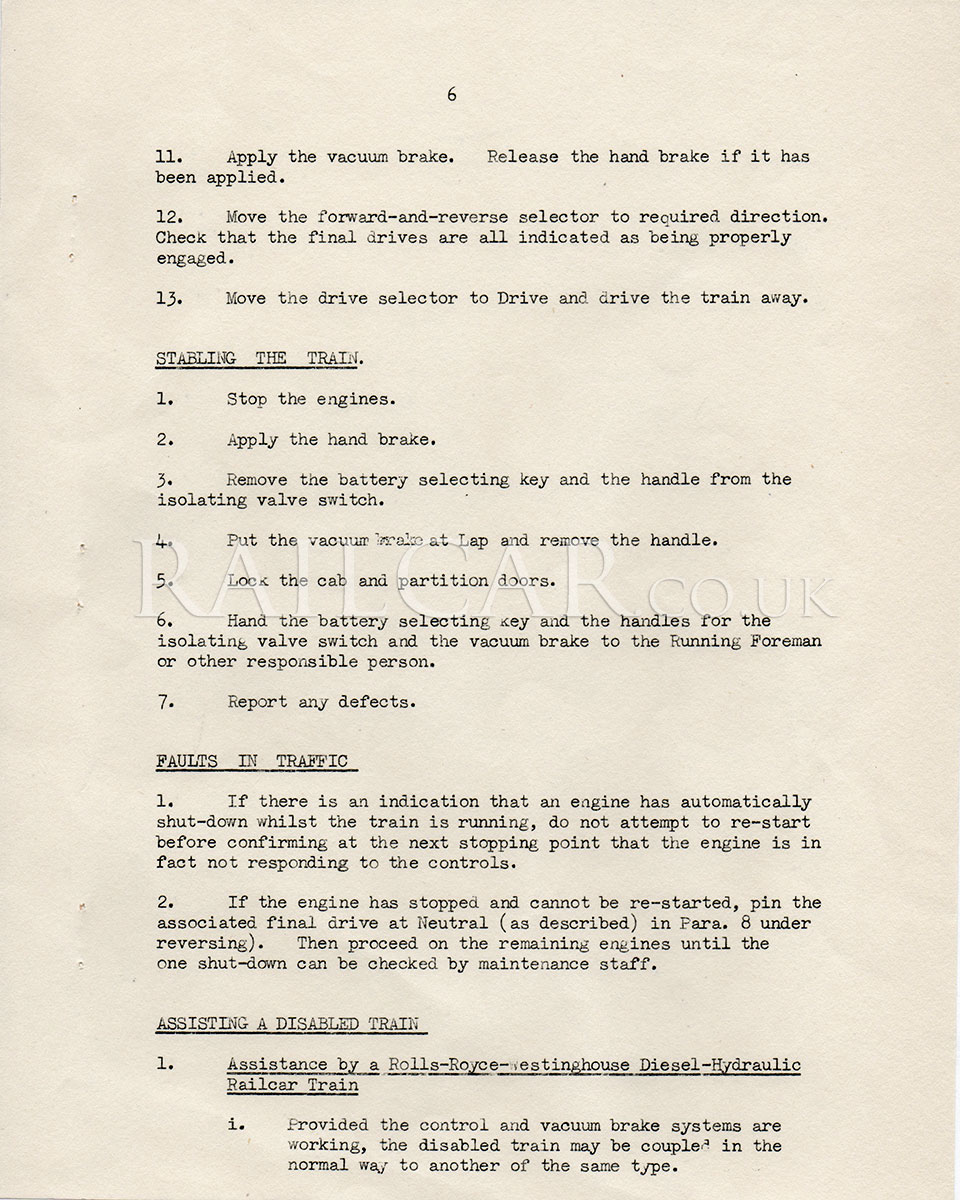

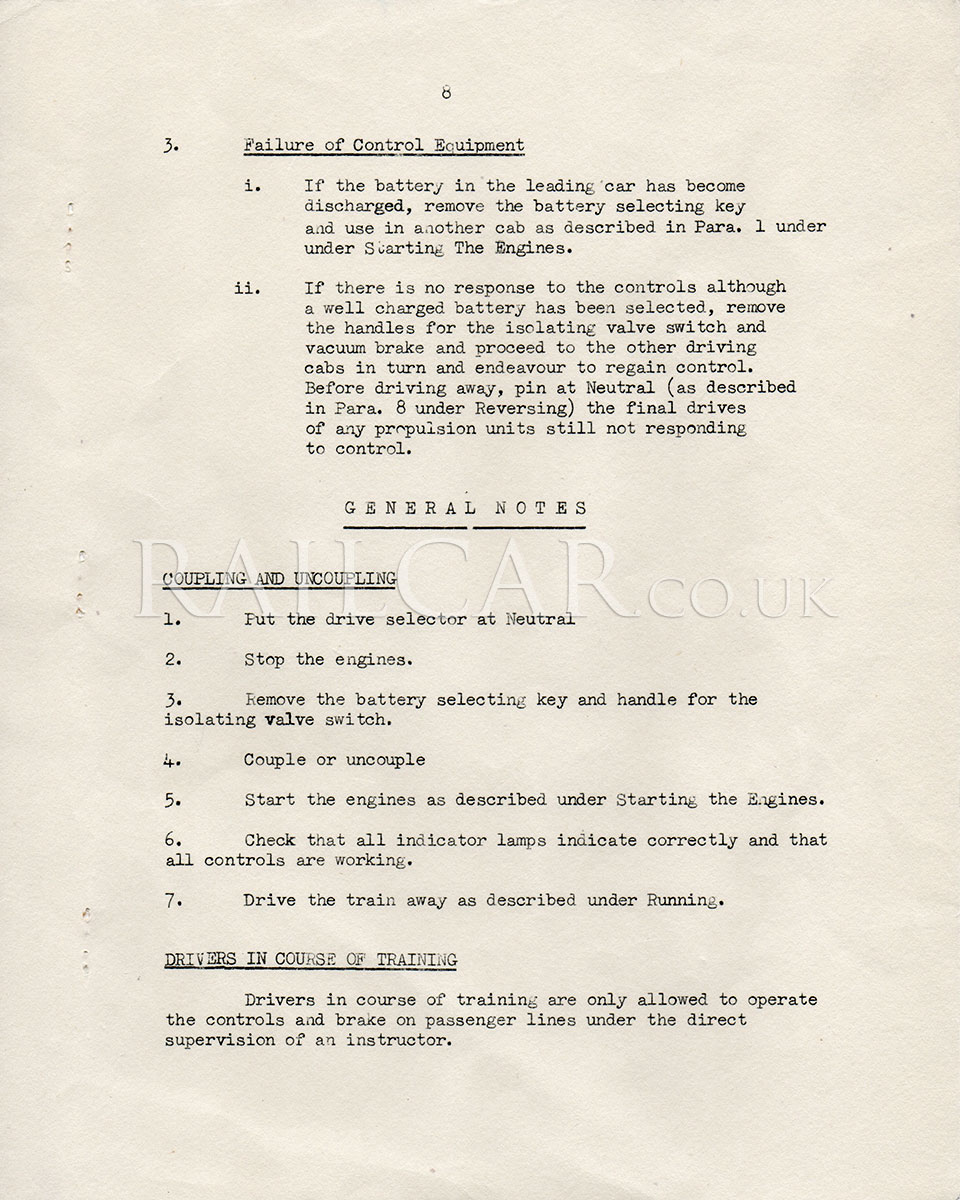

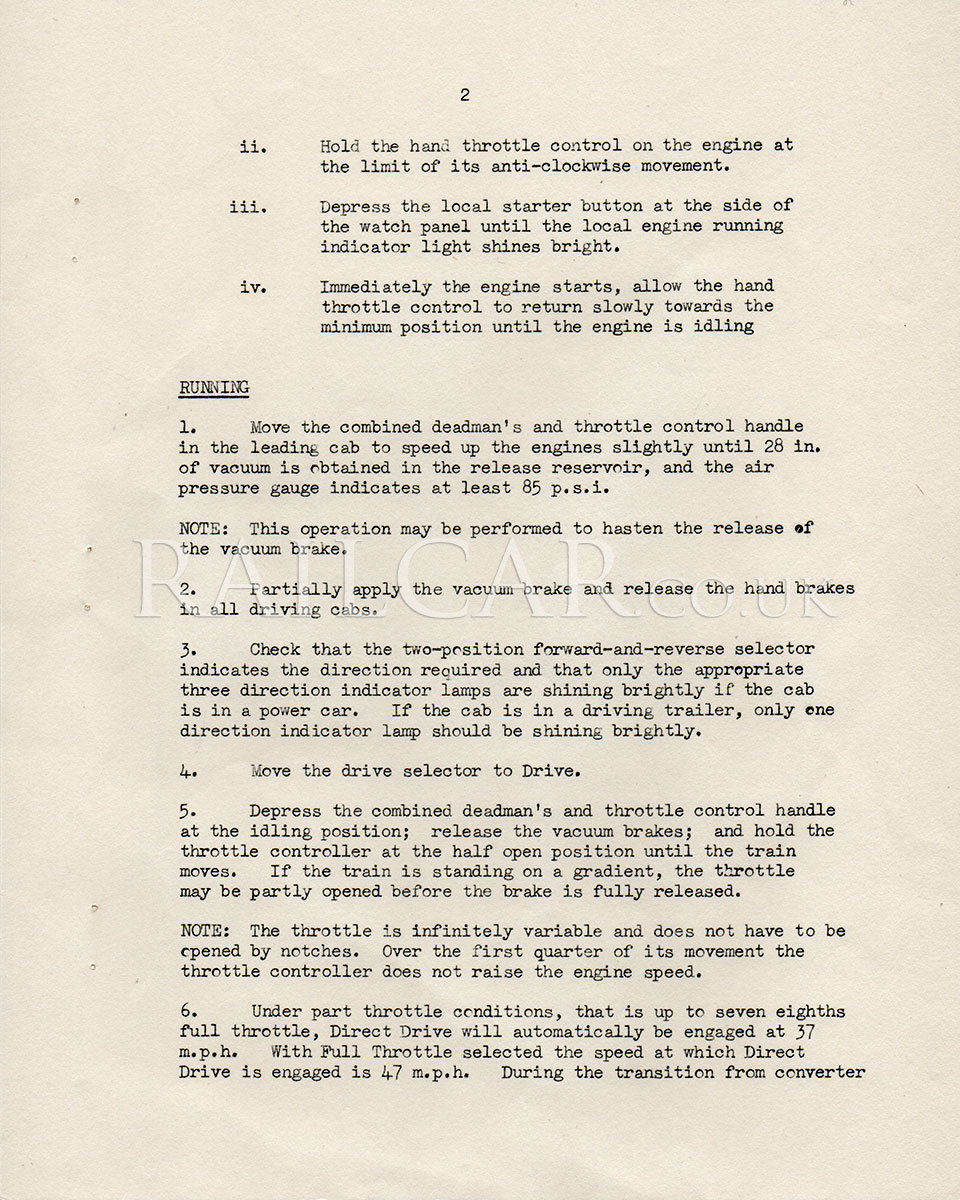

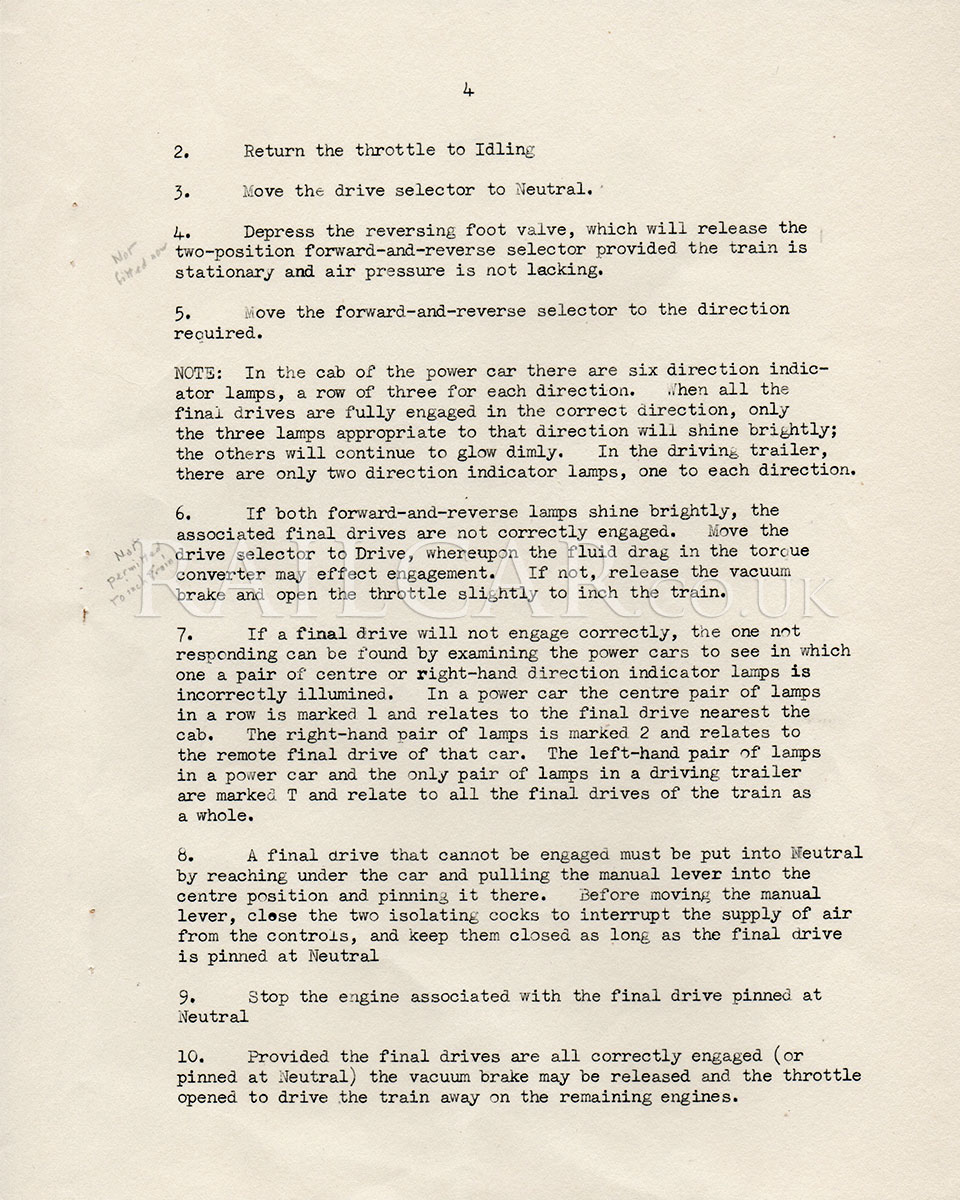

50000 Drivers Instructions Cover 50000 Drivers Instructions page 1 50000 Drivers Instructions page 2 50000 Drivers Instructions page 3 50000 Drivers Instructions page 4 50000 Drivers Instructions page 5 50000 Drivers Instructions page 6 50000 Drivers Instructions page 7 50000 Drivers Instructions page 8

PDF (2.8mb)

Numbering

Vehicles Type Seating Diagram no. Lot no. Weight
50000 DMBS 62 2nd 632 30341 41ton 3cwt
56000 DTCL 12 1st + 62 2nd 641 30342 31ton 3cwt

The vehicles were withdrawn before class numbers were introduced.

Neither of the vehicles survived into preservation.
