Cardan Shafts


The First (Freewheel) Shaft

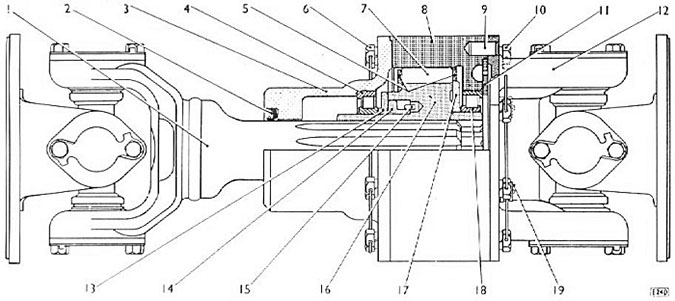

Freewheel shaft

1. Splined shaft and universal joint assembly
2. Oil seal
3. Sleeve
4. Bearing
5. Roller cage
6. Sleeve set-screw
7. Roller
8. Outer cage
9. Dowel
10. Universal joint set-screw
11. Retaining plate
12. Universal joint assembly
13. Distance washer
14. Spring retainer
15. Spring
16. Splined sleeve
17. Retaining washer
18. Bearing
19. Lubricator

More details on the freewheel can be found here.
